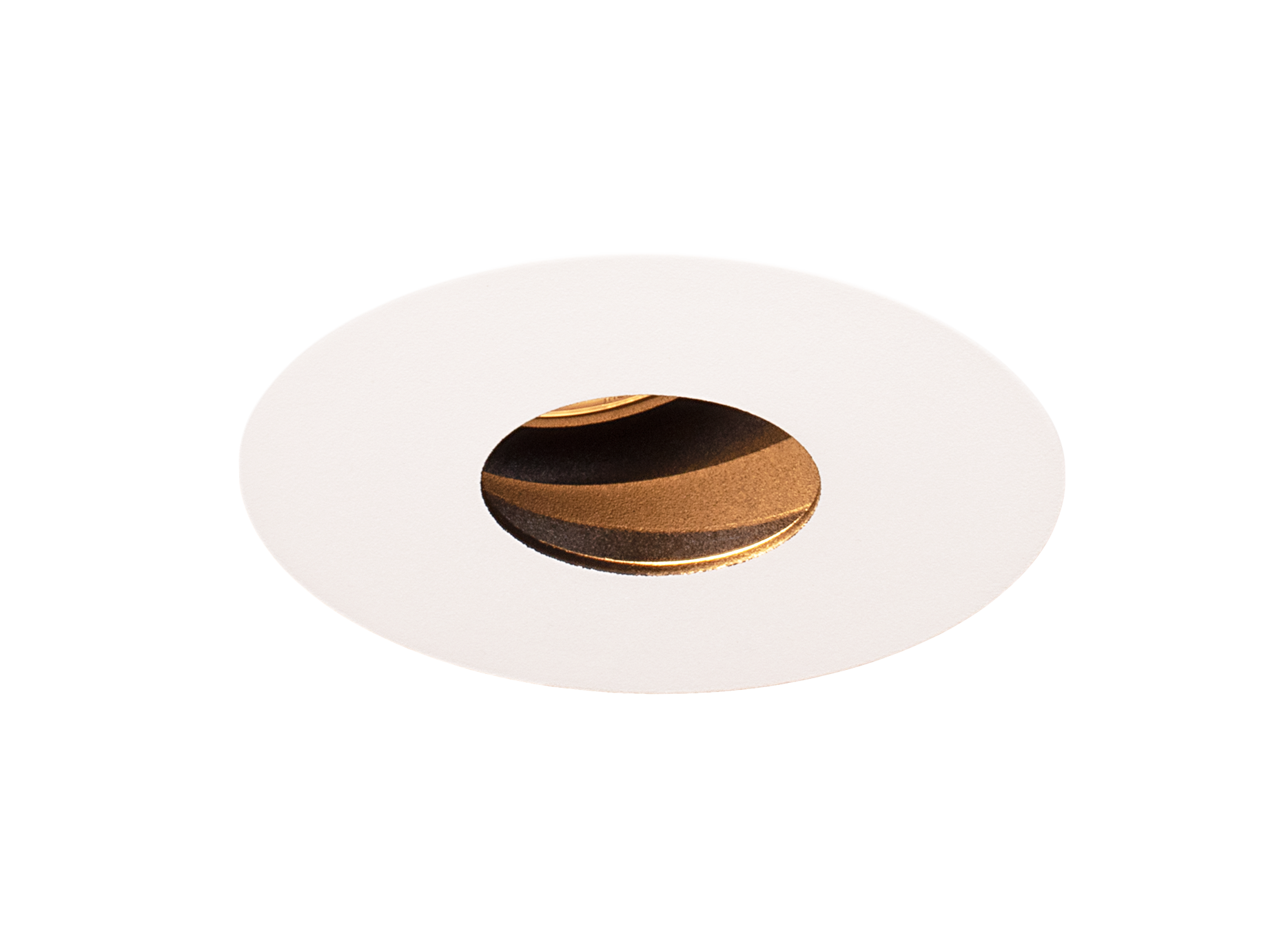

EasyFit Mix85 Edge Fixed Trim

EasyFit Mix85: One system, four styles. Mix85 Edge: Ø85mm (3.35”) overall trim. Ø45mm (1.77”) aperture.

Available with standard trim kit or trimless kits for full skim, partial skim, or wood/stone ceilings.

All Mix fixtures are avaiable in damp and wet.

The EasyFit housing for retrofit installations into existing ceilings. Simple to install method allows installation from below the ceiling. A remote driver box and a plug and play tethered power supply.

Products sold into North America are assembled, warehoused and shipped by Lucent Lighting Incorporated located in New York.

Specification

Aperture:Ø1.77"
Overall Dimension:Ø3.35"
Ceiling Cut Out:Ø3.15"
Ceiling Thickness:0.20" - 1.10"
Ingress Protection:Interior / Damp / Wet

Available light sources

Light source: LED50 ONE QUANTUM HE

Introducing the LED50 ONE Quantum High Efficacy series. Choice of 3 colour temperatures and 4 beam options. Designed to run at 200mA. Fully dimmable with an appropriate driver.

* For delivered lumen, refer to the luminaire data sheet.

LED Power:6.6W
Source Luminous Output*:1088-1187lm
Drive Current:200mA
Input Voltage:33V
CCT:2700K/3000K/4000K
Beam Option:NF/MF/FL/WFL
CRI:≥90 CRI
Dimming Options:Phase, 0-10V, 1-10V, DALI and Bluetooth

Product Code: AMX85000-ED-TR

Light source: LED50 ONE QUANTUM HO

Introducing the LED50 ONE Quantum High Output series. Choice of 3 colour temperatures and 4 beam options. Designed to run at 350mA. Fully dimmable with an appropriate driver.

* For delivered lumen, refer to the luminaire data sheet.

LED Power:11.9W
Source Luminous Output*:1793-1899lm
Drive Current:350mA
Input Voltage:34V
CCT:2700K/3000K/4000K
Beam Option:NF/MF/FL/WFL
CRI:≥90 CRI
Dimming Options:Phase, 0-10V, 1-10V, DALI and Bluetooth

Product Code: AMX85000-ED-TR

Light source: LED50 ONE GEN3

Introducing the LED50 ONE GEN3 - the latest evolution in our popular LED50 series. Choice of 5 colour temperatures and 4 beam options. Designed to run at 350mA. Fully dimmable with an appropriate driver.

* For delivered lumens, refer to the luminaire data sheet.

Power:12.6W
Luminous Output:1108-1258lm
Drive Current:350mA
Input Voltage:36V
CCT:2200K/2400K/2700K/3000K/4000K
Beam Option:SP/MF/FL/WFL
CRI:>90 CRI
Lifetime:L70 B10 105,000hrs @ Ta 25°C
Dimming Options: Phase, 0-10V, 1-10V, DALI and Bluetooth

Product Code: AMX85000-ED-TR
