EasyFit Oculus Trim

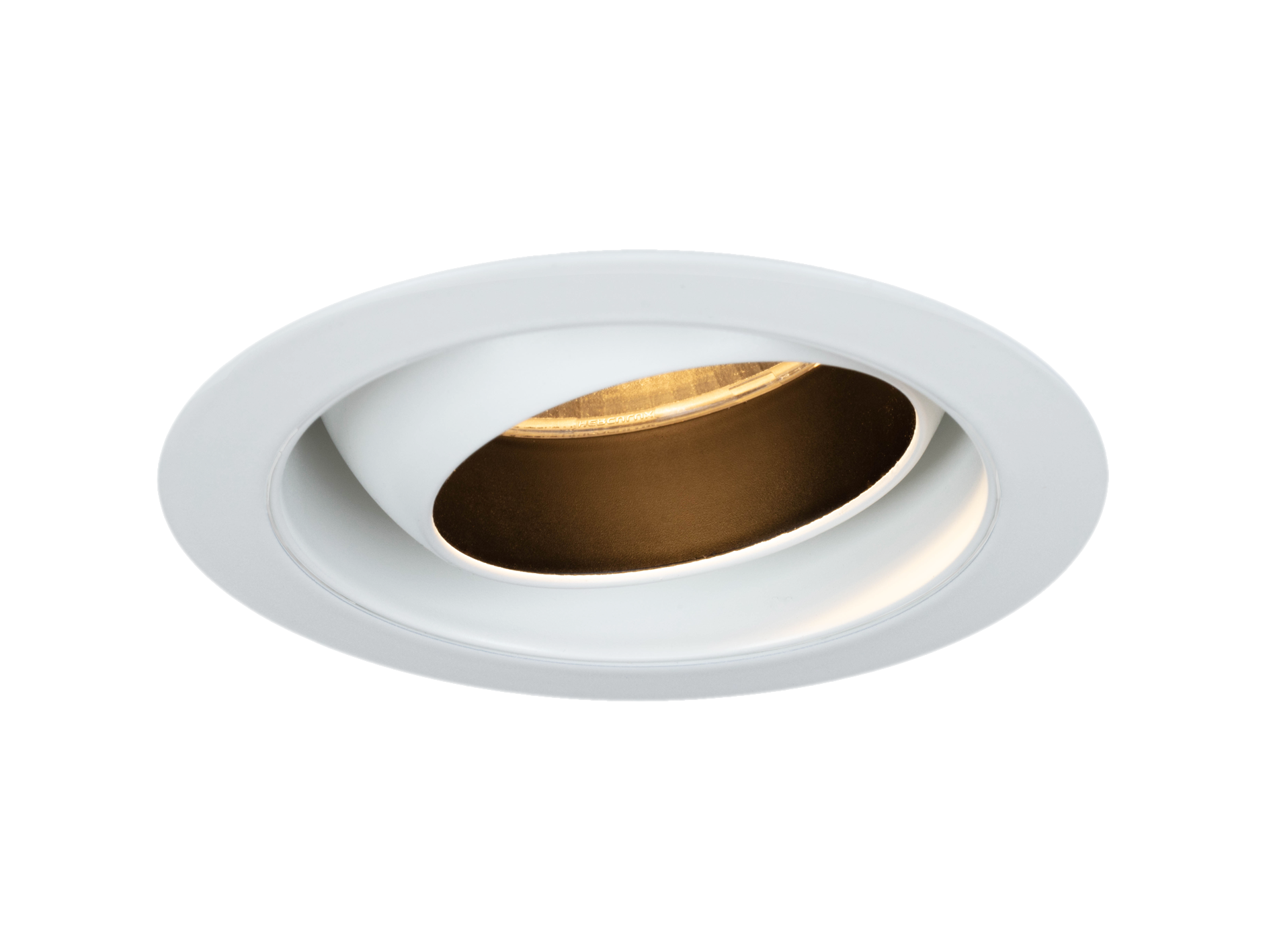

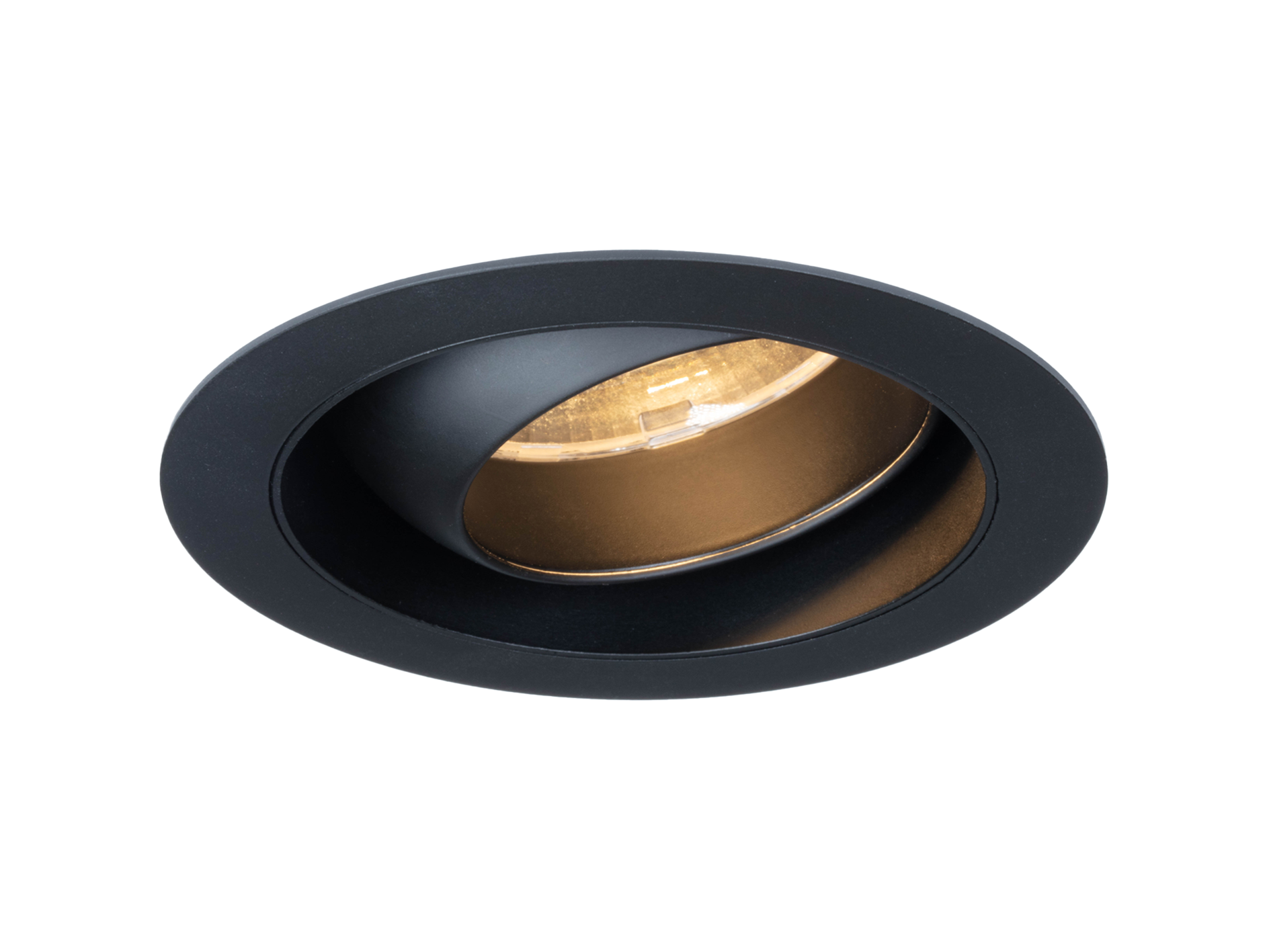

EasyFit Oculus Ø65mm (2.56”) aperture, fully adjustable downlight with Oculus mechanism. 30° adjustment in all directions.

Available with standard trim kit or trimless kits for full skim, partial skim, or wood/stone ceilings.

All Oculus fixtures are avaiable in damp and wet.

The EasyFix box cannot be installed/maintained through the Oculus Installation Kit and is intended for remote installation ONLY.

Products sold into North America are assembled, warehoused and shipped by Lucent Lighting Incorporated located in New York.

Specification

Aperture :Ø2.56"
Adjustable :30°
Overall Dimension :Ø3.54"
Ceiling Cut Out :Ø3.22"
Ceiling Thickness :0.20"-0.98"
Ingress Protection :Interior / Damp / Wet

Available light sources

Light source: LED50 ONE QUANTUM HE

Introducing the LED50 ONE Quantum High Efficacy series. Choice of 3 colour temperatures and 4 beam options. Designed to run at 200mA. Fully dimmable with an appropriate driver.

* For delivered lumen, refer to the luminaire data sheet.

LED Power:6.6W
Source Luminous Output*:1088-1187lm
Drive Current:200mA
Input Voltage:33V
CCT:2700K/3000K/4000K
Beam Option:NF/MF/FL/WFL
CRI:≥90 CRI
Dimming Options:Phase, 0-10V, 1-10V, DALI and Bluetooth

Product Code: AOC010-TR

Light source: LED50 ONE QUANTUM HO

Introducing the LED50 ONE Quantum High Output series. Choice of 3 colour temperatures and 4 beam options. Designed to run at 350mA. Fully dimmable with an appropriate driver.

* For delivered lumen, refer to the luminaire data sheet.

LED Power:11.9W
Source Luminous Output*:1793-1899lm
Drive Current:350mA
Input Voltage:34V
CCT:2700K/3000K/4000K
Beam Option:NF/MF/FL/WFL
CRI:≥90 CRI
Dimming Options:Phase, 0-10V, 1-10V, DALI and Bluetooth

Product Code: AOC010-TR

Light source: LED50 ONE GEN3

Introducing the LED50 ONE GEN3 - the latest evolution in our popular LED50 series. Choice of 5 colour temperatures and 4 beam options. Designed to run at 350mA. Fully dimmable with an appropriate driver.

* For delivered lumens, refer to the luminaire data sheet.

Power:12.6W
Luminous Output:1108-1258lm
Drive Current:350mA
Input Voltage:36V
CCT:2200K/2400K/2700K/3000K/4000K
Beam Option:SP/MF/FL/WFL
CRI:>90 CRI
Lifetime:L70 B10 105,000hrs @ Ta 25°C
Dimming Options: Phase, 0-10V, 1-10V, DALI and Bluetooth

Product Code: AOC010-TR
