MiniTrim Round Fixed Shallow Height

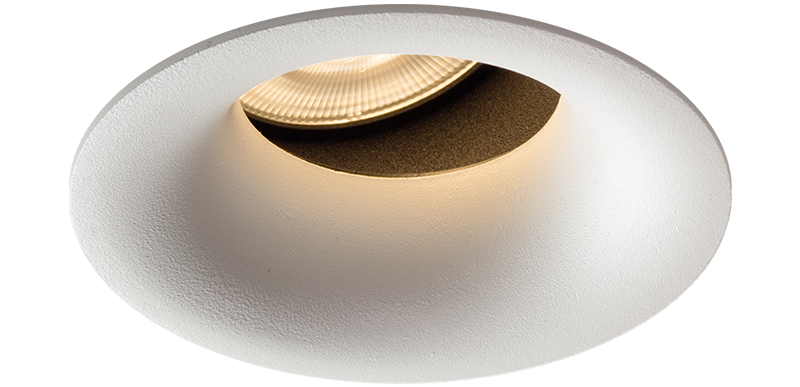

MiniTrim Fixed Shallow Height downlight with soft appearance and minimal trim to achieve a trimless effect.

This product accommodates LOW output LED50 ONE GEN2 modules.

Specification

Aperture:Ø78mm
Overall Dimension:Ø86mm
Ceiling Cut Out:Ø81mm
Ceiling Thickness:25mm MAX
Ingress Protection:IP20-IP44

Available light sources

Light source: LED50 ONE GEN2 Shallow Height Low Output

Introducing the LED50 ONE Generation 2 Shallow Height Low Output. Choice of 3 colour temperatures and 3 beam options. Designed to run at 250mA. Fully dimmable with an appropriate driver.

* For delivered lumen, refer to the luminaire data sheet.

LED Power:8.25W
Source Luminous Output*:770-861lm
Drive Current:250mA
Input Voltage:33V
CCT:2700K/3000K/3500K/4000K
Beam Option:12°/24°/38°/60°
CRI:90 CRI
Dimming Options:Phase, 0-10V, 1-10V, DALI and Bluetooth

Product Code: 860-LED
