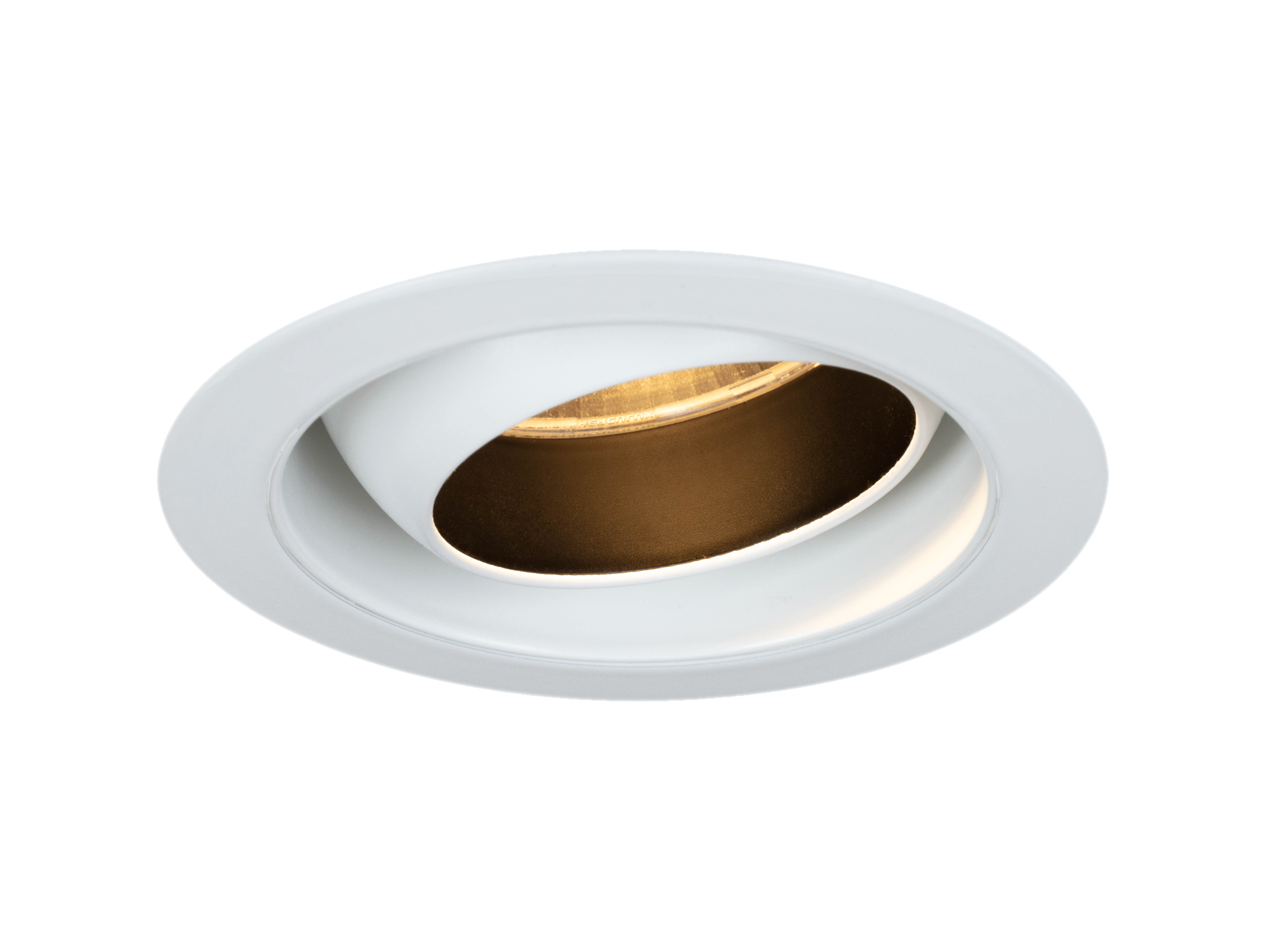

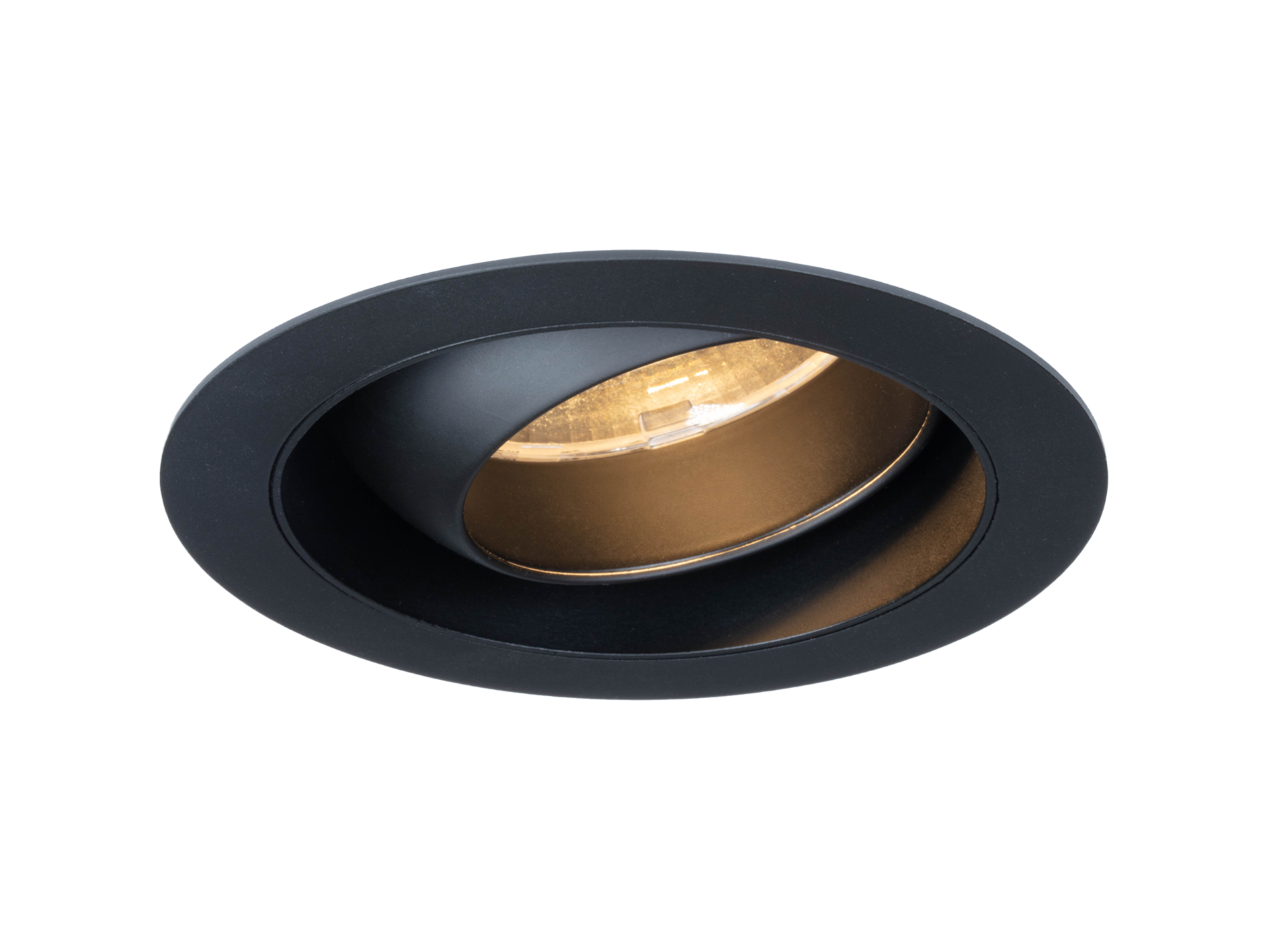

Oculus Trim

Ø65mm (2,26”) aperture, fully adjustable downlight with Oculus mechanism. 30° adjustment in all directions.

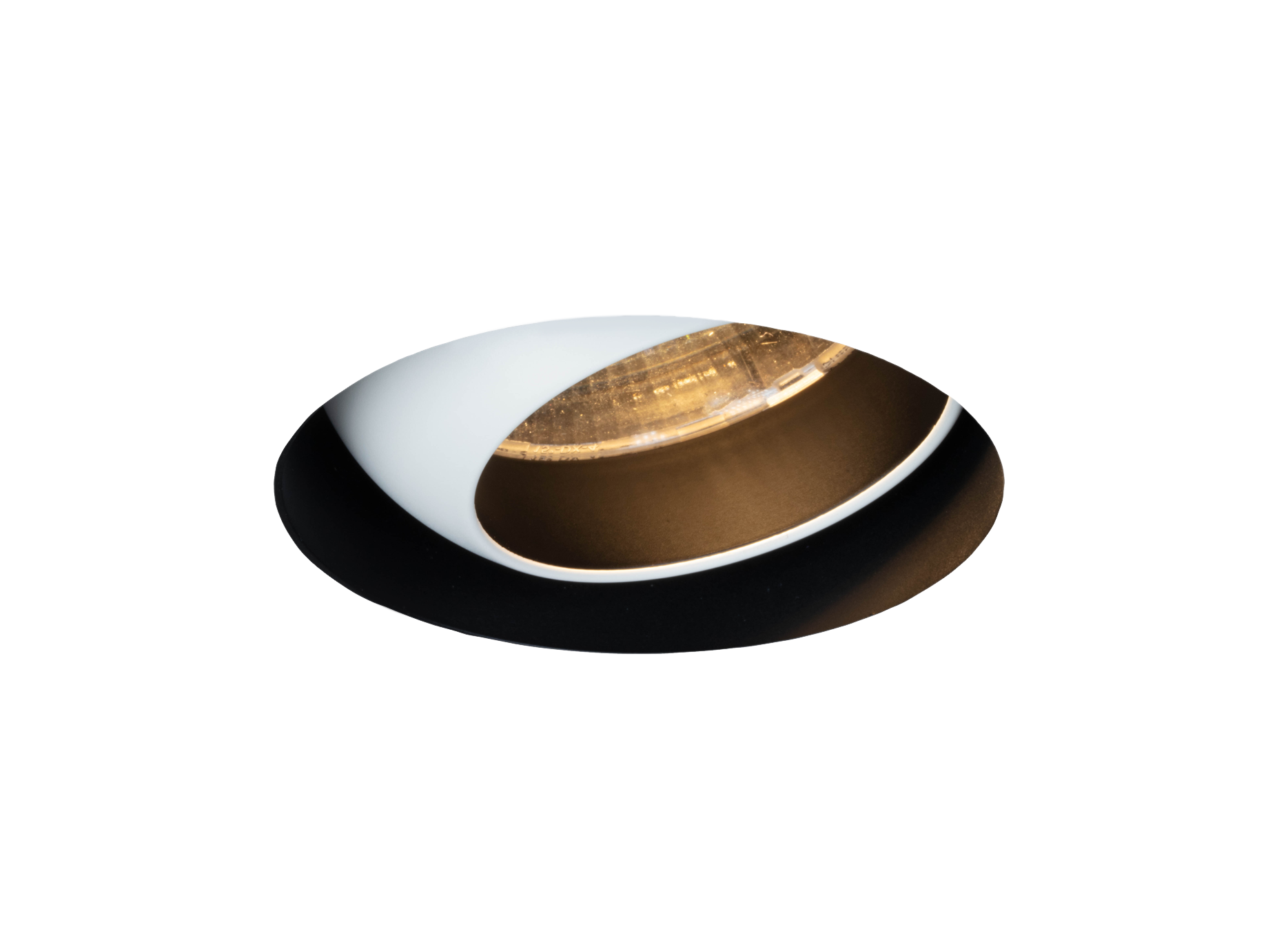

Available with standard trim kit or trimless kits for full skim, partial skim, or wood/stone ceilings.

All Oculus fixtures are IP54 as standard - IP65 on request

All Oculus downlights have been tested and approved to EN 1363-1:2020 and EN 1365-2:2014 for 60 minutes Fire Rating . To be ordered with the correct fire rating code.

Specification

Aperture :Ø65mm
Adjustable :30°
Overall Dimension :Ø90mm
Ceiling Cut Out :Ø82mm
Ceiling Thickness :25mm max
Ingress Protection :IP54-IP65
Overall Height:88mm (3,46”) + 25mm (0,98”)

Available light sources

Light source: LED50 ONE QUANTUM HE

Introducing the LED50 ONE Quantum High Efficacy series. Choice of 3 colour temperatures and 4 beam options. Designed to run at 200mA. Fully dimmable with an appropriate driver.

* For delivered lumen, refer to the luminaire data sheet.

LED Power:6.6W
Source Luminous Output*:1088-1187lm
Drive Current:200mA
Input Voltage:33V
CCT:2700K/3000K/4000K
Beam Option:NF/MF/FL/WFL
CRI:≥90 CRI
Dimming Options:Phase, 0-10V, 1-10V, DALI and Bluetooth

Product Code: OC010-TR

Light source: LED50 ONE QUANTUM HO

Introducing the LED50 ONE Quantum High Output series. Choice of 3 colour temperatures and 4 beam options. Designed to run at 350mA. Fully dimmable with an appropriate driver.

* For delivered lumen, refer to the luminaire data sheet.

LED Power:11.9W
Source Luminous Output*:1793-1899lm
Drive Current:350mA
Input Voltage:34V
CCT:2700K/3000K/4000K
Beam Option:NF/MF/FL/WFL
CRI:≥90 CRI
Dimming Options:Phase, 0-10V, 1-10V, DALI and Bluetooth

Product Code: OC010-TR

Light source: LED50 ONE GEN3

Introducing the LED50 ONE GEN3 - the latest evolution in our popular LED50 series. Choice of 5 colour temperatures and 4 beam options. Designed to run at 350mA. Fully dimmable with an appropriate driver.

* For delivered lumens, refer to the luminaire data sheet.
